Description

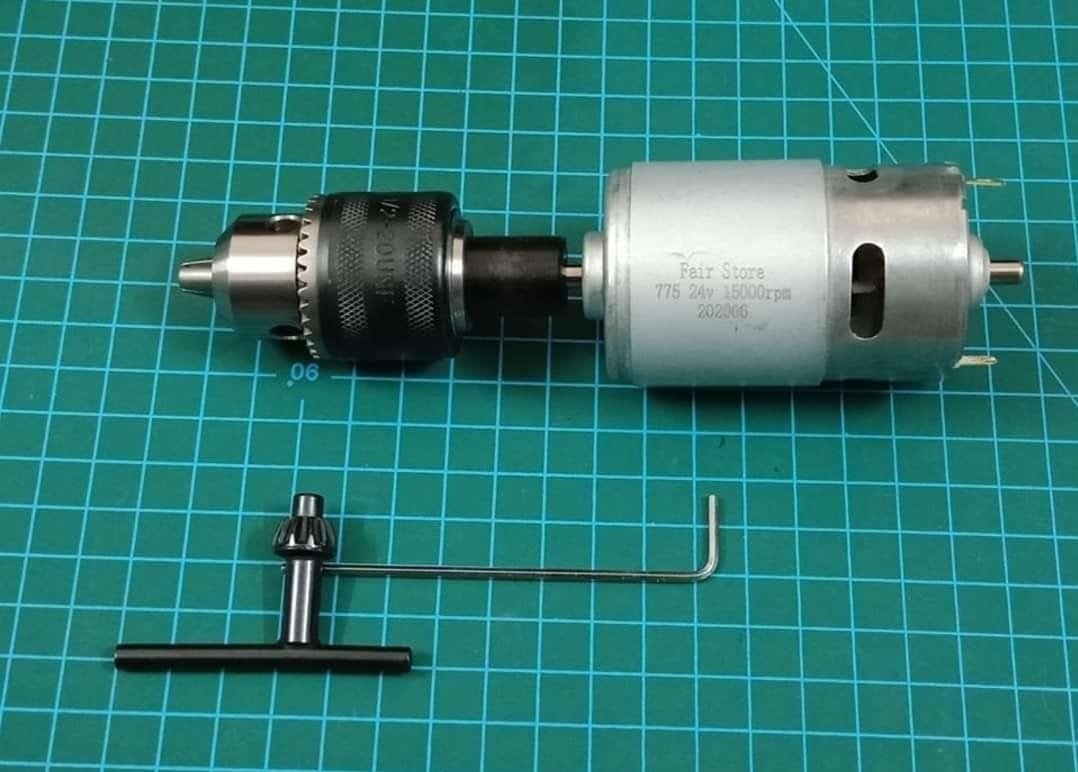

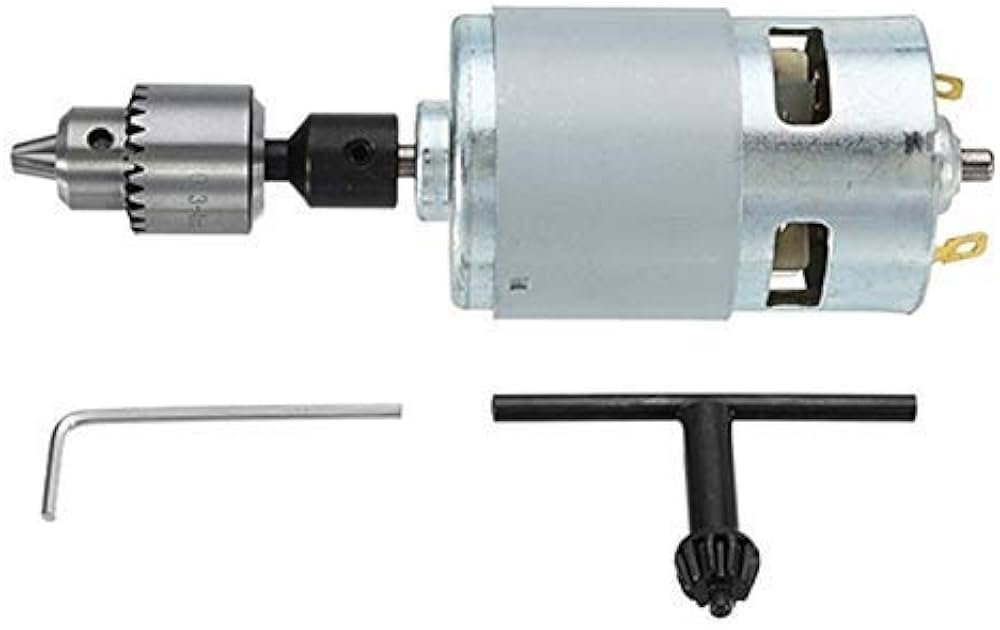

DC 12V Lathe Press 775 Motor With Miniature Hand Drill Chuck 0.3-4mm/0.6-6mm/1.5-10mm and Mounting Bracket
drill chuck for 775 motor
drill chuck adapter
Specification:
Type: 775 Motor
Material: Aluminum Alloy + Stainless Steel
Rated Voltage: DC 12 V
No-load Speed: 10000(rpm)
Drill Chuck: (optional)
#1: 0.3-4mm chuck JTO
#2: 0.6-6mm chuck B10
#3: 1.5-10mm chuck B12
| Model | 775 |
| Rated voltage | 12V-36v |
| Speed | 12V 13000rpm |
| Torque | 3kg.cm |
| Former high level | 4.5mm |
| Front steps diameter | 17.5mm |
| Body diameter | 42mm |
| Shaft diameter | 5mm |
| Body length | 67mm |
| Length of output shaft at tail | 6mm |
| Diagonal installation pitch | 29mm |
| Mounting hole size | M4 |
| Power | 150W |
Features:
* Tools are complete and convenient
* DIY, play your hands ability
* Application: Micro Hand Drill
* For milling machine, lathe, drilling machine, wood working machine.
* The shank with screw can be tight and flex for you.
1 x 775 Motor
1 x Bracket
1 x Drill Chuck
1 x Chuck Key
1 x Connecting Link
