Description

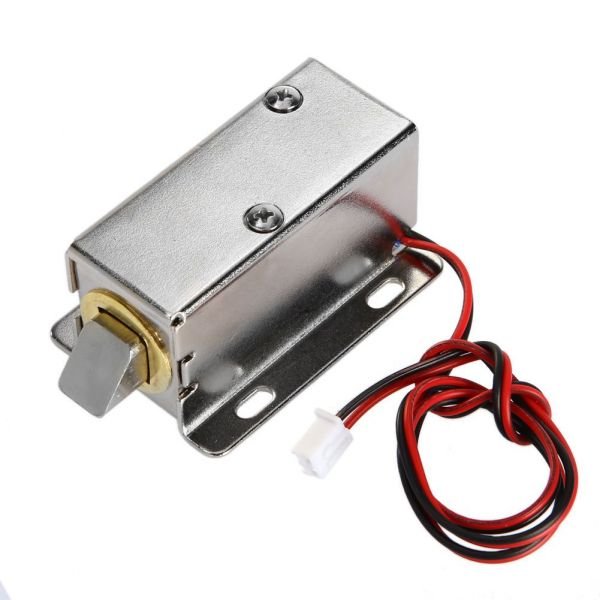

Does controlling door and cabinet access with the power of Electromagnetism interest you? Excellent! In effect, this latch/lock solenoid is an electronic lock. When powered with a 12VDC source, the latch is pulled in, allowing movement. Without power, the latch is extended, blocking movement and your secret drawer is safe and secure.
This Solenoid Latch comes with a mounting bracket which can be removed with two screws. Once removed the solenoid can be rotated 180 and remounted.
An intermittent-duty solenoid is designed to be energized for no more than 10 seconds. The intermittent duty solenoid is used in a fail-secure(products are locked when power is removed. Power is applied to unlock the door) electric strike application.
Features
- Draws 350mA at 12V
- Designed for 1-10 seconds long activation time
- Unlocking Time: 1 second
- Energized forms: Intermittent
- The lock pin extends 10mm
- Wire length: 10cm Terminates in a 2-pin male JST connector.
