Description
Feature:

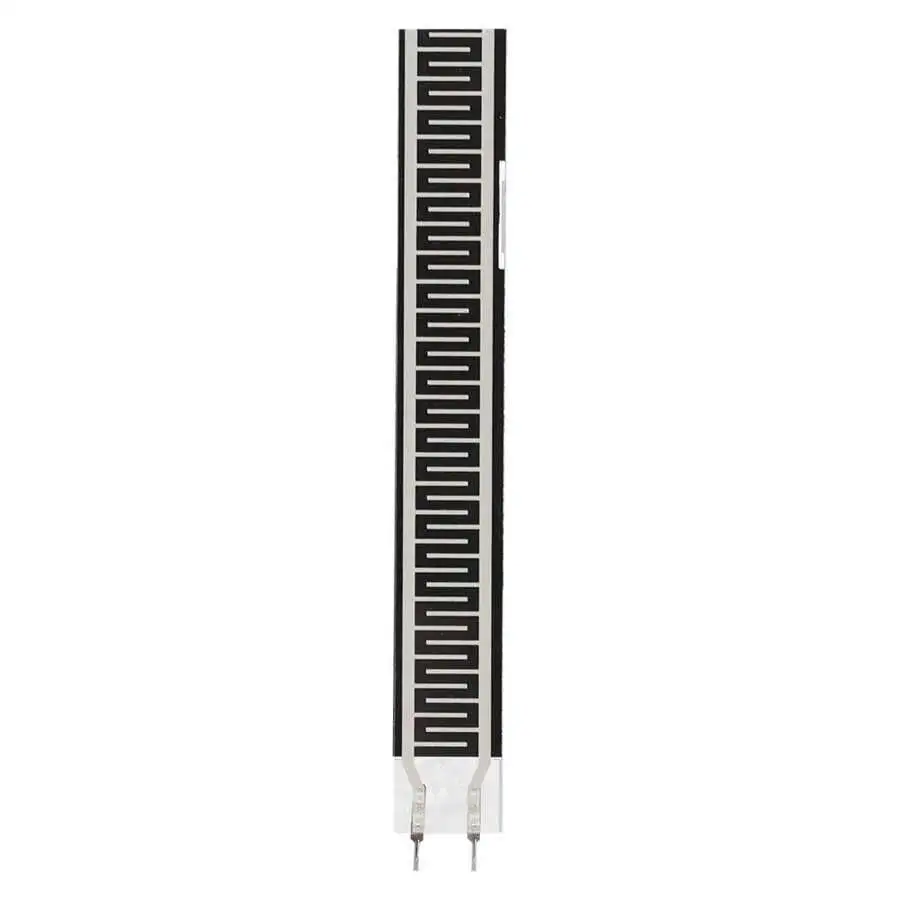

1. The film pressure sensor is flexible and slim, featuring low power consumption and rapid response.
2. Flexible pressure sensor can sense weak dynamic or static forces.
3. The top layer is a flexible film and pressure-sensitive layer composited on the film.
4. The pressure sensing range is 20g to 10kg or more.
5. Precise sensing, quick response, long service life.
2. Flexible pressure sensor can sense weak dynamic or static forces.
3. The top layer is a flexible film and pressure-sensitive layer composited on the film.
4. The pressure sensing range is 20g to 10kg or more.
5. Precise sensing, quick response, long service life.
Specification:
Item Type: Film Pressure Sensor
Pressure Sensing Range: 20g~10kg or more
Triggering Force: 20g, trigger when resistance < 200kΩ by default
Thickness: 0.35mm
Shape: Sheet, Flexible
Not Triggering Resistance: >10MΩ
Activation Time: <0.01s
Hysteresis: +10%, (RF+ – RF-)/FR+, 1000g force
Response Time: <10ms
Electromagnetic Interference EMI: Not generated
Electrostatic Discharge ESD: Not ESD sensitive
Drift: <5%, 2.5kg load, 24H
Pressure Sensing Range: 20g~10kg or more
Triggering Force: 20g, trigger when resistance < 200kΩ by default
Thickness: 0.35mm
Shape: Sheet, Flexible
Not Triggering Resistance: >10MΩ
Activation Time: <0.01s
Hysteresis: +10%, (RF+ – RF-)/FR+, 1000g force
Response Time: <10ms
Electromagnetic Interference EMI: Not generated
Electrostatic Discharge ESD: Not ESD sensitive
Drift: <5%, 2.5kg load, 24H
Size: 118 x 12 (L x W)
